National Structural Steelwork Compliance Scheme

National Structural Steelwork Compliance Scheme

The supply of an unacceptable degree of non-compliant, unsuitable and often-faulty building products is increasingly being seen in building, infrastructure and resources projects in Australia, ranging from small local developments to major projects involving international teams.

Alarmingly, a recent Australian Industry Group (AiG) survey reported that 95% of respondents surveyed in the steel product sector reported non-conforming product in their supply chain.

While our Standards suite in general, and AS/NZS 5131 in particular, provide a technically sound foundation, and the National Structural Steelwork Specification (NSSS) provides a robust implementation of AS/NZS 5131 in project process, the checking and auditing of deliverables is vitally important to achieve the quality and risk-minimised outcomes our community expects and our regulatory system requires.

Unfortunately, it is not straightforward to properly check the deliverables from the steel fabrication or erection process. Documentation requirements are substantial (as would be expected) and many processes such as welding are considered ‘special processes’, meaning the outputs cannot be readily checked without destroying the component. Hence, the inputs must be controlled and managed to ensure fit-for-purpose outcomes.

The ASI developed the National Structural Steelwork Compliance Scheme (NSSCS) to help manage and control the fabrication and erection process, hence ensuring fit-for-purpose deliverables. Industry association-led compliance schemes are commonplace in the UK, US, Canada and Europe. In Europe there is, in addition, a legislated mandatory construction products regulation.

New Zealand has joined Australia in developing an industry-led compliance scheme based on AS/NZS 5131.

Scope of the NSSCS

The ASI NSSCS is an independent third-party quality compliance and certification system for supply, fabrication and erection of structural steelwork in Australia. The technical basis for the NSSCS is founded on AS/NZS 5131 Structural steelwork – Fabrication and erection and is applicable to structures designed to AS 4100 (structural steelwork), AS 5100.6 (bridges) and supporting Australian Standards, including those for welding, bolting and corrosion protection.

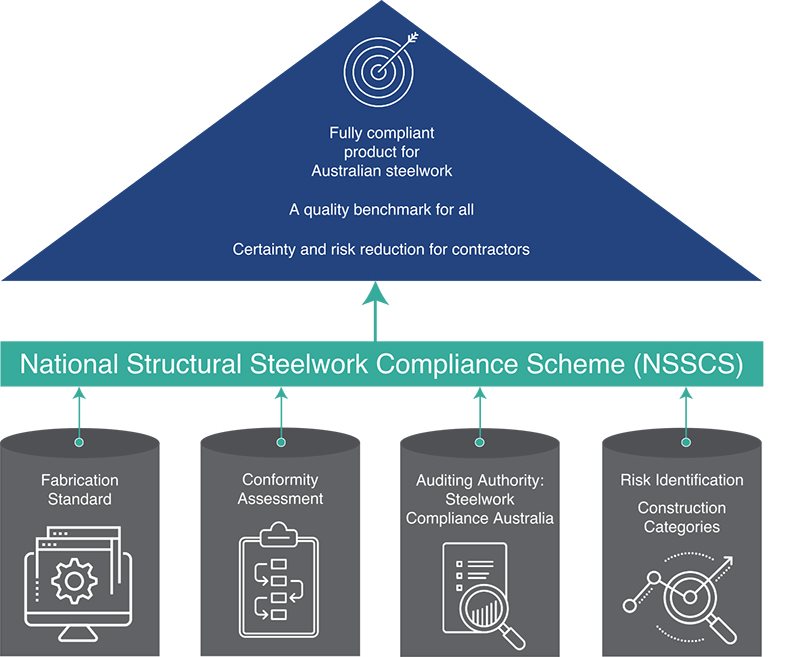

Structure of the Scheme

The NSSCS comprises four supporting pillars:

  • AS/NZS 5131 as the technical foundation
  • Risk assessment and engineer selection of the Construction Category for the particular project
  • Conformity assessment to the requirements of AS/NZS 5131
  • Auditing and certification of fabricators to one of the Construction Categories through the separate body Steelwork Compliance Australia (SCA). ASI Fabricator member companies receive substantial discounts on their audits with SCA.

The NSSCS in project process

For engineers:

  • Engineer designs the structure and creates the specification, ideally using the NSSS as template
  • Specification calls up AS/NZS 5131, Construction Category and project-specific selections.

For fabricators and erectors:

  • Undertake a web-based audit with Steelwork Compliance Australia (SCA) to establish current level of conformity
  • Refer to further information on the ASI website
  • Engage an independent consultant to assist
  • Obtain SCA certification via an audit
  • Maintain certification with annual audits.

For builders:

  • Client/builder selects fabricator, who works to requirements in AS/NZS 5131
  • Best outcomes with a fabricator independently certified by Steelwork Compliance Australia (SCA) under the NSSCS

For building certifiers:

  • Requires engineer to provide confirmation of review against full requirements of Australian Standards
  • Independently audits and approves basis of documentation from engineer
  • Confirms fabricator certified under NSSCS, or
  • Performs detailed review of supply chain documentation.

NSSCS and JAS ANZ accreditation

Responding to market demands particularly in the Government sector, for independent accreditation of the Scheme, ASI is working towards having the Scheme accredited under JAS ANZ.

Update March 2019: We are pleased to announce that the Scheme itself has been reviewed and approved by JAS ANZ – see the acknowledgement.
